Digital Display Viscometer
Rotary Viscometer DHJ-8S has the characteristics of high measurement sensitivity, reliable test results, convenient use and operation, and beautiful appearance. It is an instrument used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids. It can be widely used in grease, paint, plastics, etc. , Measurement of viscosity of various objects such as drugs, accessories, coatings, detergents, etc.
Contact
Online Consult
- Description
- Specifications
- Paper
- Video
Rotary Viscometer DHJ-8S has the characteristics of high measurement sensitivity, reliable test results, convenient use and operation, and beautiful appearance. It is an instrument used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids. It can be widely used in grease, paint, plastics, etc. , Measurement of viscosity of various objects such as drugs, accessories, coatings, detergents, etc.
Rotary Viscometer DHJ-8S,The rotor is driven by the motor to rotate at a constant speed through a variable speed. When the rotor rotates in the liquid, the greater the viscosity of the liquid acting on the rotor, the greater the viscous moment; on the contrary, the smaller the viscosity of the liquid, the smaller the viscous moment. The viscous moment acting on the rotor It is detected by the sensor and processed by the computer to obtain the viscosity of the measured liquid.
Using microcomputer technology, it can easily set the range (rotor number and speed), digitally process the data detected by the sensor, and clearly display the rotor number, speed, and the measured liquid on the display screen. Viscosity value and its full scale percentage value, etc.
DHJ-8S is equipped with 4 rotors (No. 1, 2, 3, 4) and 8 speeds (0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm), and 32 combinations of these , can measure the viscosity of various liquids within the measurement range.
|
Model |
DHJ-8S |
|
Measuring range |
1 ~2×106mPa.s |
|
Rotor Specifications |
Rotor No. 1-4 Optional No. 0 rotor can measure low viscosity to 0.1mPa.s |
|
Rotor speed |
0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm |
|
Automatic file |
Can automatically select the appropriate rotor number and speed |
|
Operation interface selection |
Chinese/English |
|
Reading Stable Cursors |
When the vertical bar square cursor is full, the display reading is basically stable |
|
Measurement accuracy |
±2%(Newtonian liquid) |
|
Power supply |
AC 220V±10% 50Hz±10% |
|
Working environment |
Temperature 5℃~35℃, relative humidity not more than 80% |
|
Dimensions |
370×325×280mm |
|
Net weight |
6.8㎏ |
| host | 1 set |

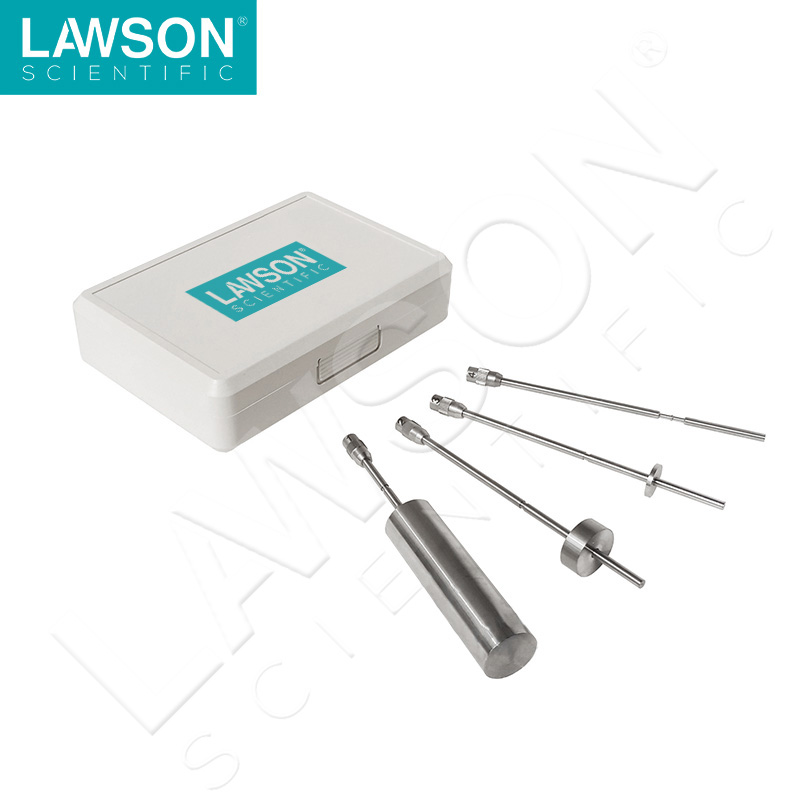

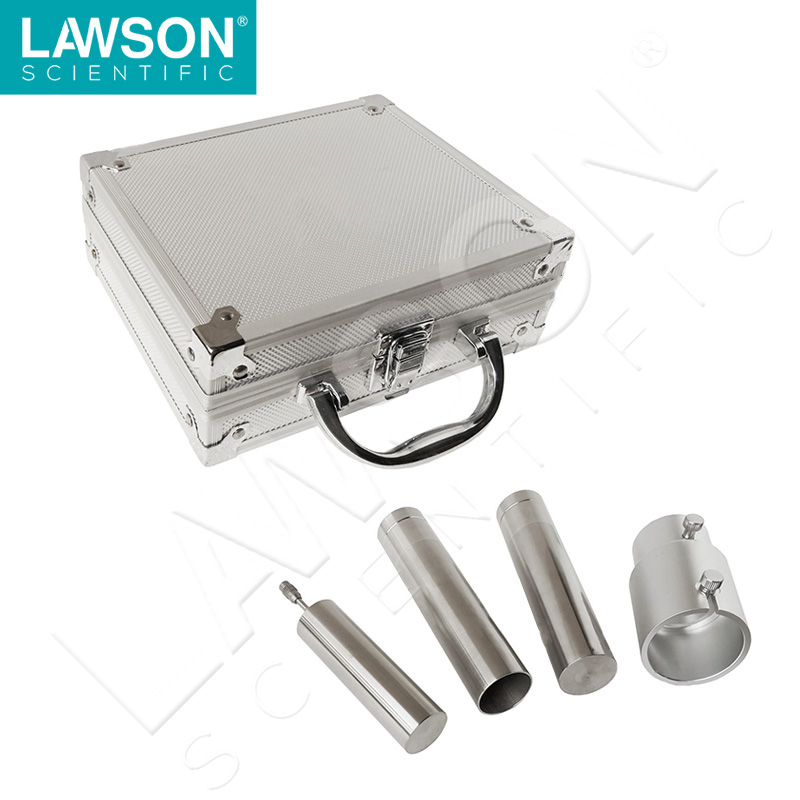

| Rotors 1, 2, 3, 4 | 1 set (Note: No. 0 rotor is optional) |
| Power Adapter | 1 set |
| Protective frame | 1 single |
| base | 1 single |
| Lifting column | 1 set |
| user's manual | 1 part |
| certificate | 1 part |
| Warranty | 1 part |
| Hexagon head | 1 single |
| dumb wrench | 2 single(Note: 1 for each size) |
